Proportional hydraulic control valve systems



If you want to upgrade/modernize your crane to a proportional control system, then this offer is for you:

From our warehouse stock, we offer fully proportional control units tailored to your specific needs, with radio remote control or 2x5 function joystick, for crane brands such as Palfinger, Hiab, HMF, Atlas, Fassi, IMT, National Crane, Manitex, Elliott Equipment Company, Altec, Terex Utilities, Link-Belt, Tadano America Corporation, Grove, Liebherr, Sany America, XCMG, Haulotte, Sennebogen, and Cormach.

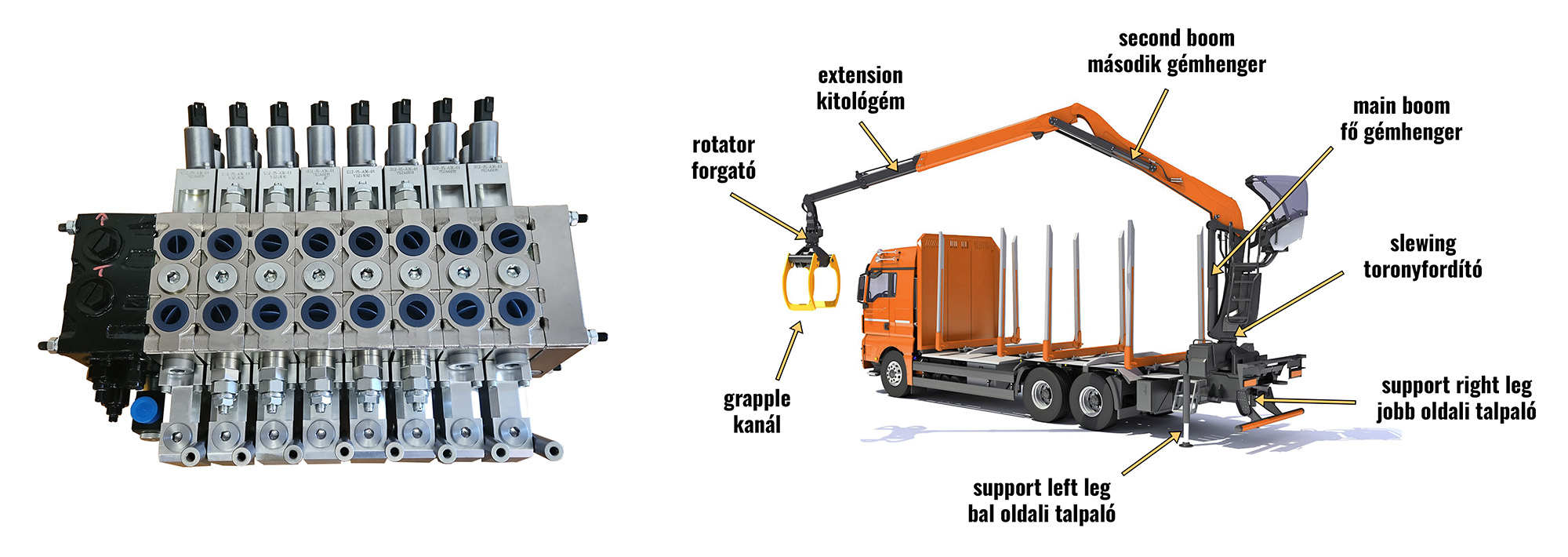

Areas of application for proportional control valves

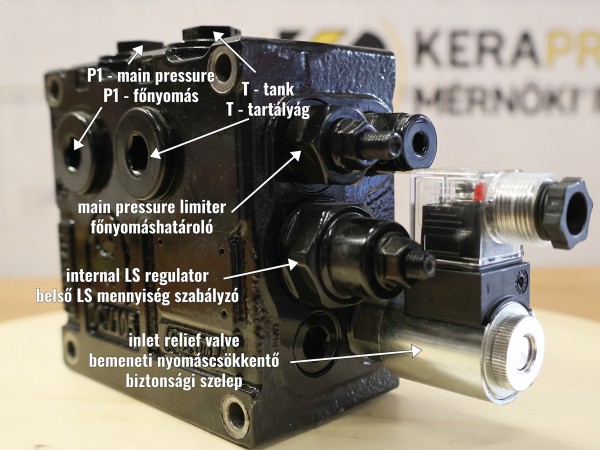

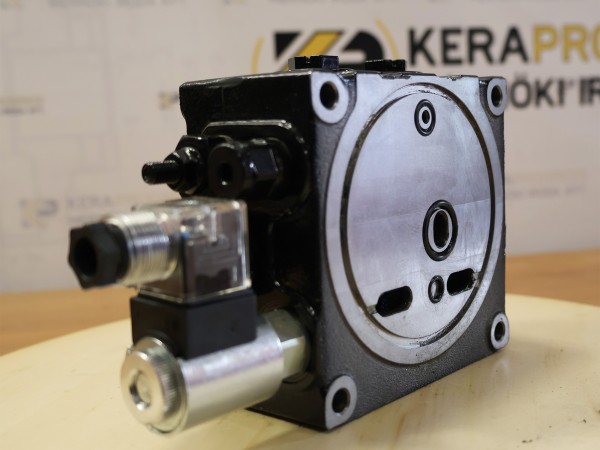

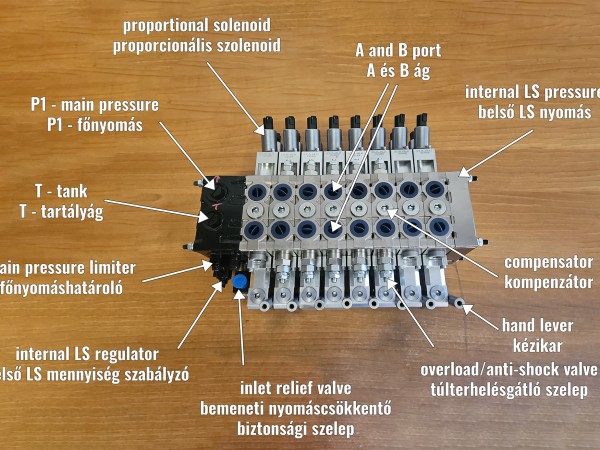

Components of the valve

Section options

Our hydraulic control units are available optimized for different pump flow rates and can be flexibly configured to suit your application requirements.

  • Pump flow rates:

    • max 55 L/min

    • max 105 L/min

    • max 175 L/min

  • Section options: 1 to 15 sections.
    (Depending on flow rate maximum 8 or 9 section on a single valve.)

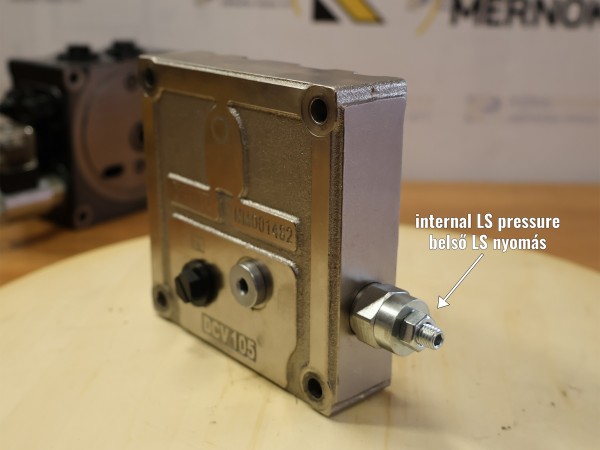

  • Inlet section: can be equipped with relief valve.

  • Specific sections can be equipped with anti-shock protection. (e.g. cranes).

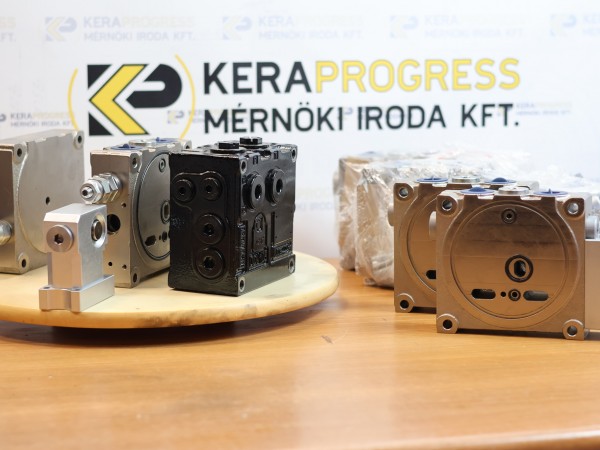

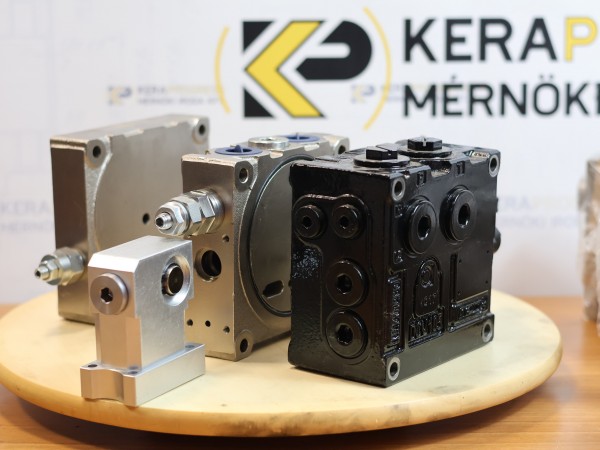

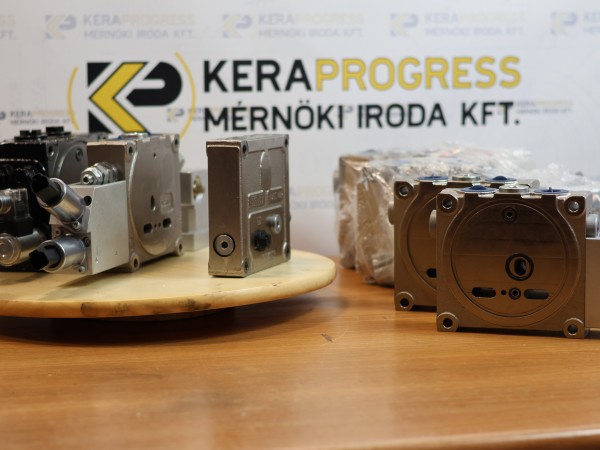

control valve block sections
control valve block sections
control valve block sections

Control options

Radio remote controller
Radio remote controller
Joysticks
Kit

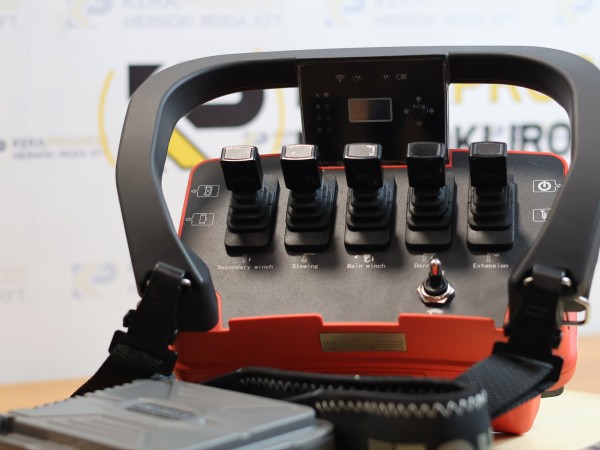

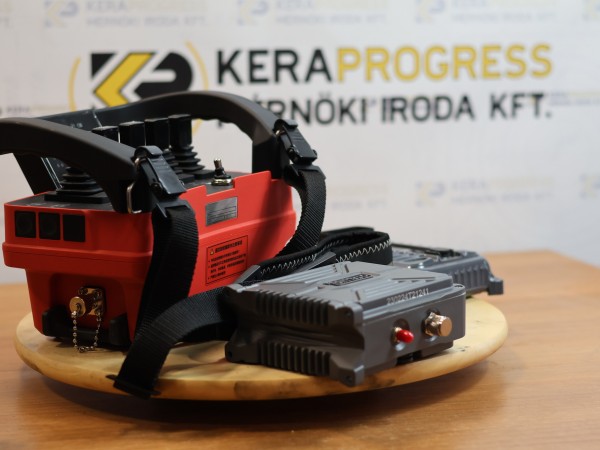

Radio-Controlled Controller
  • greater freedom of movement and flexibility for the operator

  • operation from a safe distance (e.g., in hazardous work environments)

  • better visibility of the work area, as the operator is not tied to the machine

  • particularly useful for cranes, lifting machines, or mobile hydraulic equipment

Radio remote controller
Radio remote controller
Joysticks
Kit

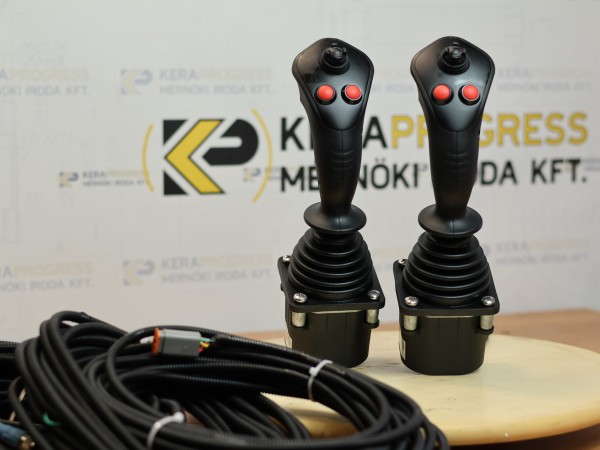

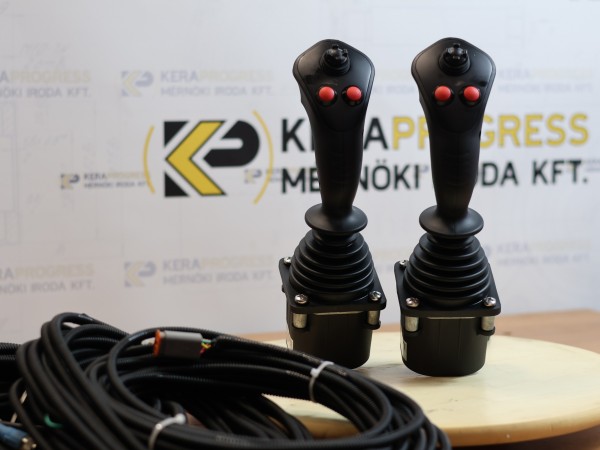

Joystick
  • simple and direct control

  • does not require a separate signal transmission system or battery

  • cost-effective solution

  • ideal for applications where the operator works directly in the machine

For a more detailed description, visit the following page: LINK

System configurator

You can create a proportional system based on parameters on the following configurator page:

Proportional control valve system configurator

We assemble the units from our stock according to individual specifications. The lead time is generally 10-15 working days.

The completed systems are delivered tested. A video recording of the test is made and made available to our customers.
